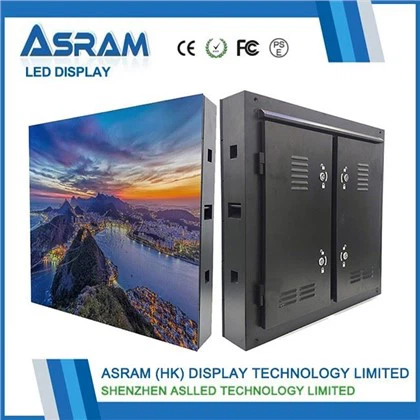

P5 Outdoor Full Color Led Display

ASRAM Display Technology Limited is one of the leading manufacturers and suppliers of p5 outdoor full color led display in China. We provide high quality customized products with low price for customers around the world. Welcome to wholesale cheap products in stock here from our factory. If you have any enquiry about rental service and free shipping, please feel free to email us.

                                                                                         ———————    Product parameters   ———————

   Product model：P5-2727-85                                                                                                                                    Module structure: light drive in one

   Specification description: P5 household surface is pasted with three in one module                     Lamp bead specification: 2727 lamp

______________________________________________________________________________________________________________________________________________________________________________________________________________

                                                    Unit board size: (w) 320mm * 160mm (h) lamp body: SMD2727F

 Unit                              Distance between points: 5mm                                                              Average power of unit board: 16W

 board                           Physical density: 40000/m ²                                                                    Unit board current: 8A

                                         Luminous point color: 1R1G1B                                                             Unit board weight: 0.45KG

                                         Unit board resolution: (W) 64 * 32（H)

_____________________________________________________________________________________________________________________________________________________________________

                                        Temperature: 10% - 95% RH                                                                        Working temperature: - 20 -+60

                                        Number of unit boards: 40                                                                            Unit board power supply: 5V40A

Box                                 Unit board interface: HUB75                                                                       Panel power supply: 220VAC/50HZ+_ 10%

bracket                         Optimal sight distance: 5-60m                                                                     Maximum power:<1000W/m ²

                                         Square power: 300W                                                                                        Power consumption: 200W/5PCS

                                        Best perspective: Horizontal>170Vertical>120

______________________________________________________________________________________________________________________________________________________________________

                                          Drive parts：5124/16207Constant current drive

technical                       Scanning mode：1/8Scanning                                                                    Luminance：5500cd/m²
parameter                    refresh frequency：240-1000HZ/S                                                         Service life：100000Hours

                                          Display color：4096*4096*4096                                                              Communication distance：<100m

________________________________________________________________________________________________________________________________________________________________________________

                                                                   Our products

About transportation, delivery and service

We will choose different packaging methods for different products, and there are usually cartons, wooden cases and flight cases to choose from. We will ensure that your goods are delivered in good condition to the greatest extent. There are many kinds of transportation options. Considering the speed and cost of demand, you can go to your door by express, such as DHL, FedEx, UPS, TNT, EMS, etc. We can meet different customers by air transportation to the airport, sea transportation to the seaport, truck transportation to the highway and so on. We can provide you with fast delivery or more preferential transportation.

Our services

3-year warranty

24-hour online service and technical support

OEM and ODM, we can help you design and produce products according to your needs.
