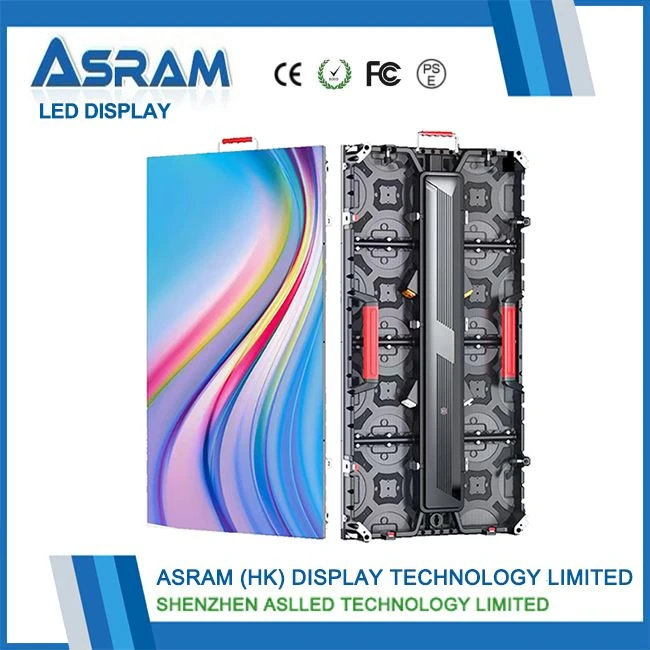

Concert Stage Event LED Video Wall Display Screen
ASRAM Display Technology Limited is one of the leading manufacturers and suppliers of concert stage event led video wall display screen in China. We provide high quality customized products with low price for customers around the world. Welcome to wholesale cheap products in stock here from our factory. If you are looking for reliable LED display solutions, we are the original manufacturer, offering factory-direct prices and worldwide shipping. Please contact us via email for detailed specifications and customized quotations.
LED rental display has the advantages of light weight, simple structure, easy disassembly and assembly, etc., which can meet the characteristics of rapid installation in the rental market, high protection, and resistance to bumps, so the rental led display can be used in major commercial performances.
Concert Stage Event LED Video Wall Display Screen Features:
1.Multiple LED rental cabinets are spliced into a large-screen display area. At present, the size of the LED rental cabinets of Asram Display Technology Limited is 500 mm × 500 mm and 1 000 mm × 500 mm, etc.
2.In order to facilitate installation and disassembly, the LED cabinet needs to be light, thin and compact; as the display quality of the LED display screen on the stage becomes more and more high-definition, and the pixel pitch becomes smaller and smaller, in order to ensure the display quality and stitching accuracy, the rental cabinet is required to be durable, die-cast aluminum Cabinets are often seen in the market.
3.In order to improve the splicing accuracy and disassembly efficiency of the LED rental cabinet, the cabinet is equipped with a quick locking device, and even a positioning mechanism is specially provided between the LED cabinets.
4.In order to protect the lamp beads on the box that may be damaged during frequent disassembly and assembly, a protective part called a mask is usually installed in front of the LED light-emitting unit.
Specifications
| Pixel pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| Pixels per cabinet | 192×384 (HxV)/192×192 (HxV) | 168×336 (HxV)/168×168(HxV) | 128×256 (HxV)/128×128 (HxV) | 104×208 (HxV)/104×104 (HxV) |
| LED lifetime | 100,000h (video – 50% brightness) | |||
| Brightness | ≥1000 nits; | |||
| Module size | 250*250mm | |||
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Refresh rate | 960-1,920Hz | |||
| Hor. viewing angle | 140° +/-5° (@50% brightness) | |||
| Vert. viewing angle | 140° +/-5° (@50% brightness) | |||
| Brightness uniformity | >98% | |||
| Dimming | 0-100% | |||
| Grey Level | 14 bits | |||
| Avg Power consumption | 350 W/m² | 320 W/m² | 300 W/m² | 280 W/m² |
| Max Power consumption | 680 W/m² | 640 W/m² | 620 W/m² | 600 W/m² |
| Operation power voltage | 100-240V / 50-60Hz | |||
| Operational temperature | -10°C to +40°C / 14°F to 104°F | |||
| Operational humidity | 10-80% | |||
| IP rating | IP54 for Indoor, IP65 for Outdoor | |||
| Dimensions | 500 x 1000 (WxH)/ 500 x 500 mm (WxH) | |||
| Weight | 13 kg / 7.5kg | |||
| Color Configuration | 1R1G1B 3 in 1 | |||
| Certifications | CE, FCC, RoHS | |||
| Warranty | 3 years standard product warranty | |||
As a background on the stage, the stage led display screen provides a variety of vivid and dazzling background images and more interactive functions, making the background images both dynamic and static, and integrating the performance and the background, making people feel immersive The feeling of the environment, more realistic reproduction, will set off the stage performance better.Not only that, even when watching on-site, as an audience, the viewing effect and feeling of the LED display is very intuitive.
