ASRAM Display Technology Limited is one of the leading manufacturers and suppliers of outdoor p3.91 led video wall display for stage background in China. We provide high quality customized products with low price for customers around the world. Welcome to wholesale cheap products in stock here from our factory. If you have any enquiry about rental service and free shipping, please feel free to email us.

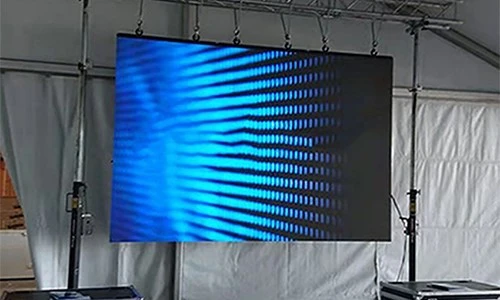

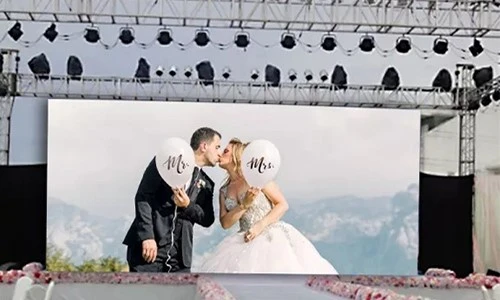

The outdoor P3.91 LED video wall display, specially designed for stage background, is an ideal choice for high-end events.

As an event planner, creating engaging and memorable experiences is crucial. One of the key factors in achieving this is selecting a reliable outdoor LED video wall. ASRAM, a leading manufacturer in China, understands your high standards for display quality and has specially designed this P3.91 LED video wall for outdoor stage backgrounds, fully meeting various outdoor display needs.

This display is a combination of advanced display technology and superior performance. It is carefully designed for high-end outdoor activities, providing the audience with realistic and delicate images, bringing an immersive visual experience, and helping your event to be wonderful and memorable.

LED display specification table

Pixel Pitch	3.91mm (0.15inch)
LED Configuration	3 in 1 SMD1921 high quality LED lamps
Cabinet Size	19.68 x 19.68 x 2.74inch / 500 x 500 x 69.6mm
Pixel Density	128x128 dots; 65536 dots per square meter
Cabinet Material	Die-casting Aluminum
Weight	17 lbs. (7.7kg)
Module Quantity	4
Module Size	250x250mm
Module Resolution	128x128dots
Drive Mode	1/16 Scan Constant Current
Brightness	more than 6500cd/sqm
Viewing Distance	3m-30m
Viewing Angle	H: 140°; V:140°
Refresh Rate	1920-3840HZ
Frame Rate	120frame/sec
Grey Scale	16.7M colors(Synchronized)
Color Temperature	R.G.B brightness 256 level adjustable
Power Input	AC110V/ 220V ±10, 50HZ
Max Power Consumption	800W/sqm
Ave. Power Consumption	300W/sqm
Storage Temperature	-40~+85 degree
Working Temperature	-20~+65 degree
Blind Spot Rate	less 1/10000
MTBF	more than 10,000 Hours
Life Span	more than 100,000 Hours
Waterproof	Front IP65, Rear IP54
Operating Humidity	10%~95%
Control System	LINSN/NOVASTAR
Video Signal Mode	RF,S-Video, RGB, RGBHV, YUV, YC etc.

Here are some of the highlights of the outdoor P3.91 LED video wall display for stage background

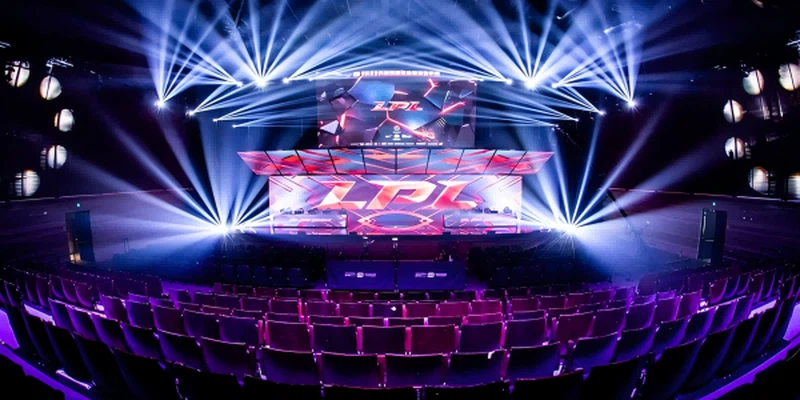

Precise picture quality and stable output

The P3.91 outdoor LED display features a high pixel density (65,536 points/㎡) and excellent close-up clarity, making it ideal for text, dynamic images, and virtual stage applications. It uses SMD1921 black LEDs with copper supports, ensuring pure color rendering and significant contrast improvement. With precise brightness correction and a unified Gamma algorithm, it ensures seamless color matching. The display supports 14-16bit grayscale and HDR processing, and is compatible with high frame rate video recording. The color temperature can be adjusted from 2500K to 9300K, adapting to various lighting conditions and providing stable, realistic image quality.

To ensure the stability of the equipment in high-frequency performances and long-term use scenarios, the P3.91 display module has a lifespan exceeding 100,000 hours. The internal components are selected from industrial-grade solutions, achieving an MTBF (Mean Time Between Failures) of over 50,000 hours. The overall screen failure rate is controlled below 0.03%, significantly surpassing industry standards. It also offers a 2-3 year full-screen warranty (customizable for extended service), along with round-the-clock technical support and localized spare parts storage, ensuring uninterrupted operation for key projects such as performances and broadcasts.

Highlight resistance to sun, real outdoor vision

1. Adjustable brightness range 800-5500cd/m².

2. Contrast 5000:1, combined with black lamp and matte mask technology.

3. Light sensing automatic adjustment module (optional) to adapt to different weather and time period brightness changes.

4. The surface is equipped with a high-transparency anti-glare PC mask, and the anti-reflection treatment effectively controls the "white haze" phenomenon.

Even when viewed under direct sunlight at noon, the content can remain clear and sharp. It is suitable for all-weather places such as the main stage of a square, city publicity, and a sunlit theater.

Highlight Resistance To Sun, Real Outdoor Vision

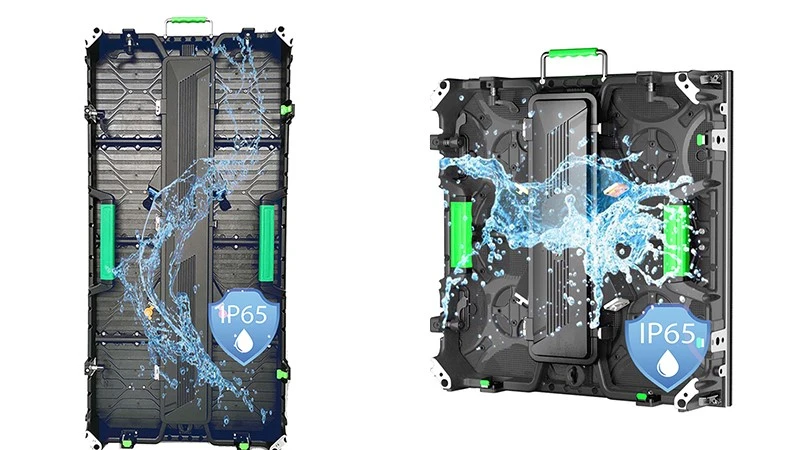

All-weather use, no compromise in harsh environment

1. The box is made of die-casting aluminum alloy, and the whole box is CNC precision processing to prevent rust and fall

2. The front and rear IP65 protection level is ensured by using nano-coated waterproof glue, double-sealed rubber ring and waterproof plug to ensure that the power line and signal line interface meet the waterproof standard.

3. It can operate stably in the temperature range of-20°C to +60°C, and pass the high and low temperature cycle test for 100 hours without failure.

Suitable for rainy season performance, seaside square or outdoor operation in sandy weather, all-weather stable operation.

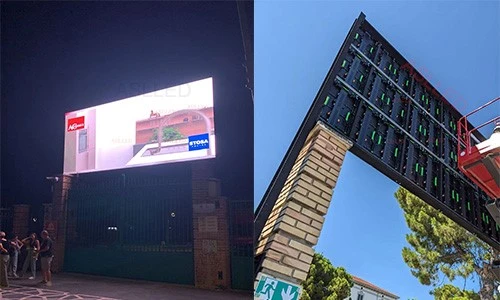

The box structure design is professional, and the installation and maintenance are one step ahead

The installation of outdoor LED displays requires addressing complex technical challenges, including load-bearing assessment, wind resistance design, high-precision splicing, and waterproof wiring, which are particularly challenging in high-altitude or open environments. For example, small-pitch products like P3.91 require precise positioning of the enclosure, and during installation, systems for lightning protection, drainage, and heat dissipation must be designed in tandem. The overall construction process involves transportation, hoisting, and temporary power supply, requiring a professional team to manage the project, with strict requirements for time and cost control.

P3.91 The outdoor LED display screen has undergone professional optimization, featuring a modular hot-swappable design that supports both front and rear maintenance, significantly reducing the complexity of maintenance. Equipped with IP65 protection, an independent cooling system, and redundant power and signal backups, it effectively enhances stability and environmental resistance. With remote diagnostics, inspections, and 24-hour technical support provided by ASRAM, it ensures long-term reliable operation under high-frequency use, significantly reducing lifecycle maintenance costs.

The box structure design is professional, and the installation and maintenance are one step ahead

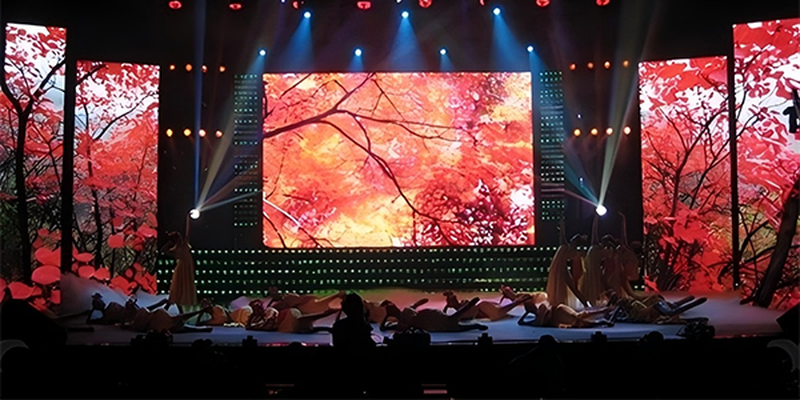

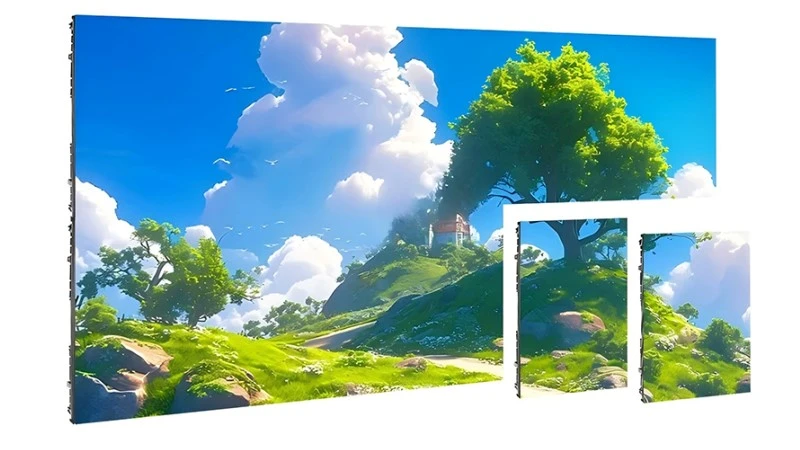

A variety of optional functional modules are available to adapt to various application scenarios

1. Expandable: wireless screen projection module, camera interaction module, 5G remote control system, NFC inspection chip and other extensions, supporting multi-screen interaction, content synchronization and remote scheduling.

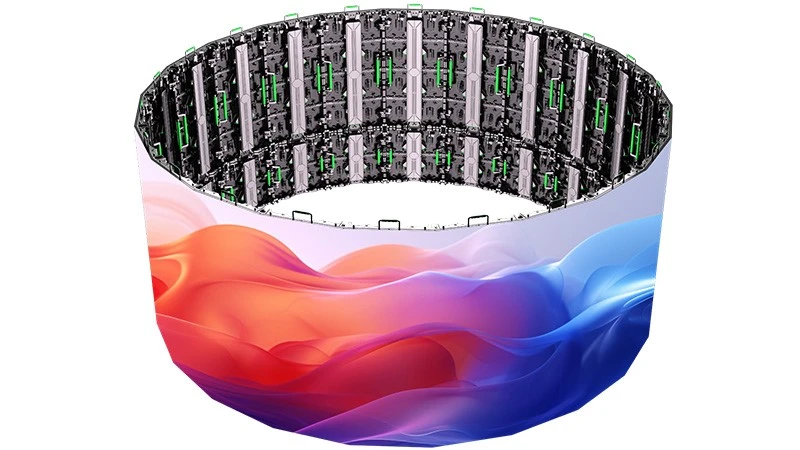

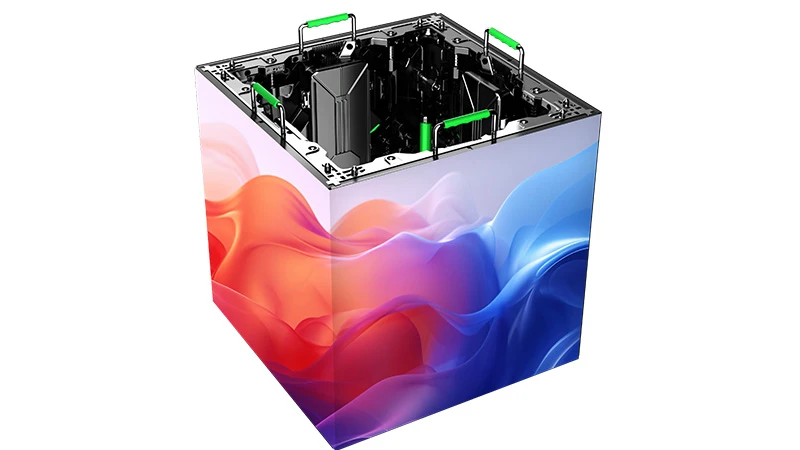

2. Supports straight line and ±5° arc splicing, suitable for curved stage design, arc curtain performance and other personalized scenes.

3. The top and bottom of the box are equipped with aviation socket hanging points, supporting various structural forms such as hoisting, stacking and frame fixing.

No matter where the audience is on the main stage, on both sides or diagonally in front, the picture is consistent and the color is not biased, which improves the overall immersion of the audience.

The signal link is flexible and stable to meet the requirements of complex field systems

1. The default configuration is a 2-in-2-out signal link (double backup design), which supports automatic switching of hot backup signals and does not black screen or lose communication.

2. The control system is compatible with NovaStar, HuiDu and other mainstream brands, and the built-in receiving card supports color space DVI/HDMI synchronous input.

3. Input interface: HDMI / DVI / SDI / VGA / USB / LAN

4. It can be connected to multi-screen, live streaming and remote playback control systems

5. Support APP wireless control and USB disk offline playback (asynchronous scheme)

It is compatible with various upper-level systems such as the main control console, monitoring host and broadcast control server, and can flexibly adapt to different content sources and on-site switching needs.

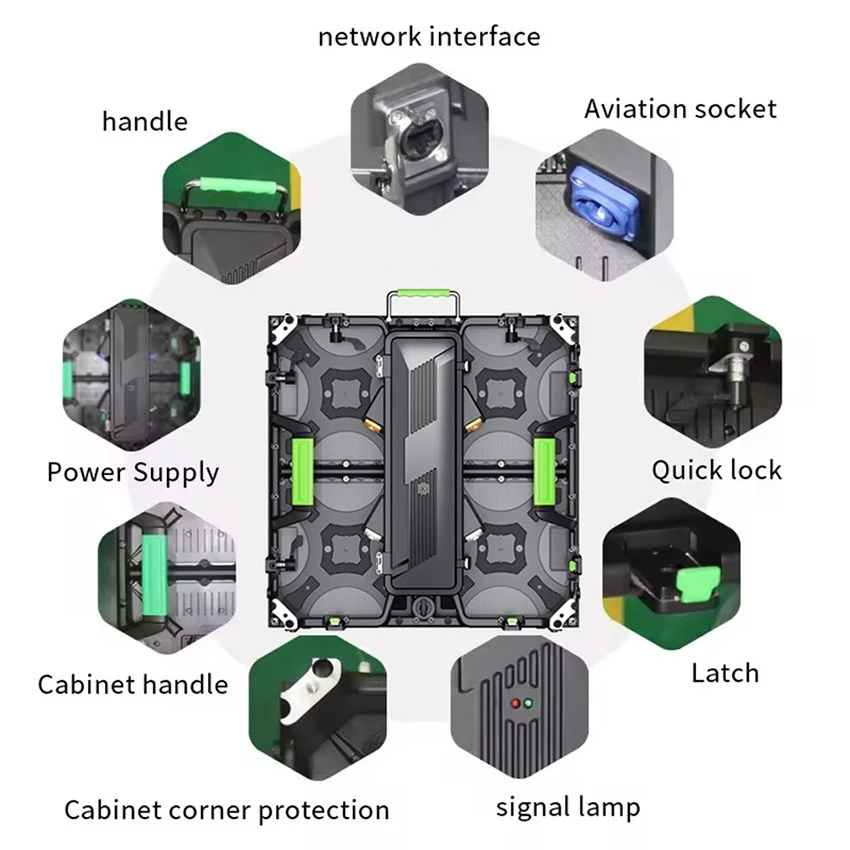

Production details and features

Each box has a hidden anti-collision corner structure at the four corners, which automatically pops out during transportation and construction to buffer impact and reduce LED damage rate by more than 80%. The rear door is equipped with a quick-removal PCU protective cover, which supports rapid maintenance of signal lines and module lines and improves on-site operation and maintenance efficiency.

The Outdoor P3.91 LED Video Wall Display for Stage Background an integrated die-cast aluminum enclosure and high-precision CNC mold technology. The outer surface is treated with anodizing and nano-spraying, achieving an IP65 protection rating, effectively resisting rain, sand, and UV damage. The screen design is modular, featuring a front-maintenance magnetic LED module, a hot-swappable power module, and a signal wiring board, significantly enhancing on-site maintenance efficiency.

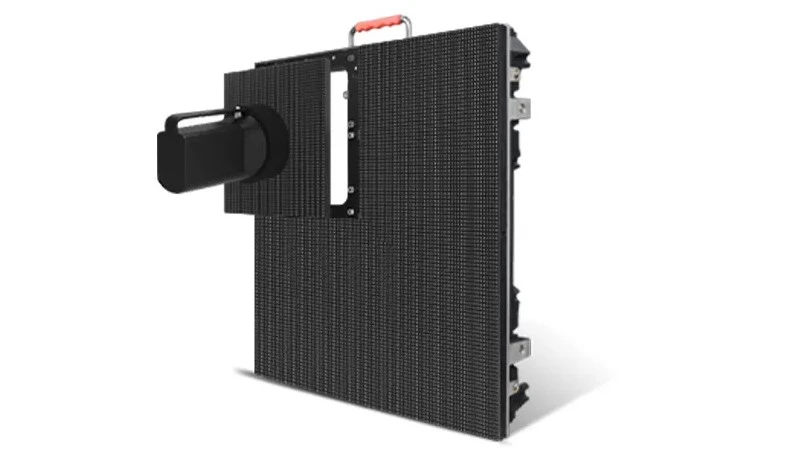

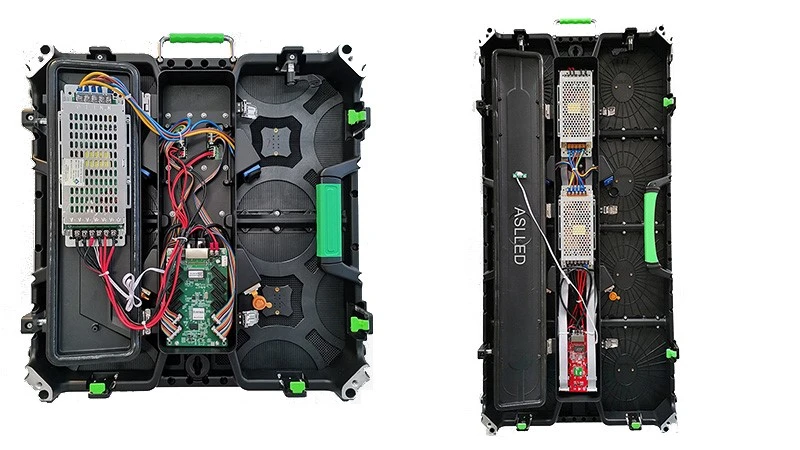

Each cabinet is equipped with the NovaStar A5S high-performance receiving card, which supports 14-bit to 16-bit grayscale output, HDR decoding, and various frame synchronization control technologies, ensuring smooth and seamless image output. Additionally, the module signals are connected using a PCB process, which ensures stable signal paths and more reliable electrical connections, reducing the risk of traditional wiring loosening due to vibrations. All modules support magnetic quick-release and double-screw locking, making maintenance and replacement easier, with an average single-module replacement time of less than 40 seconds.

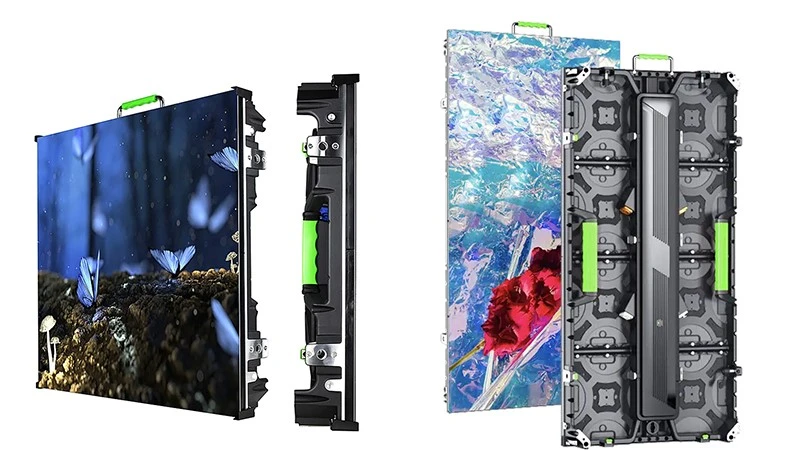

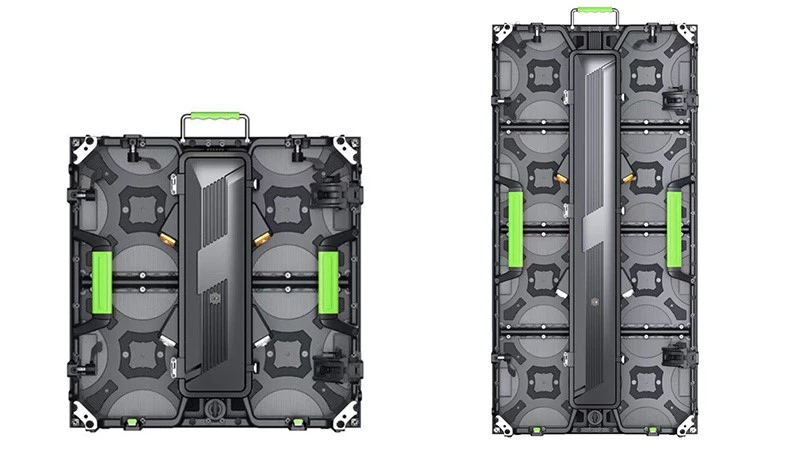

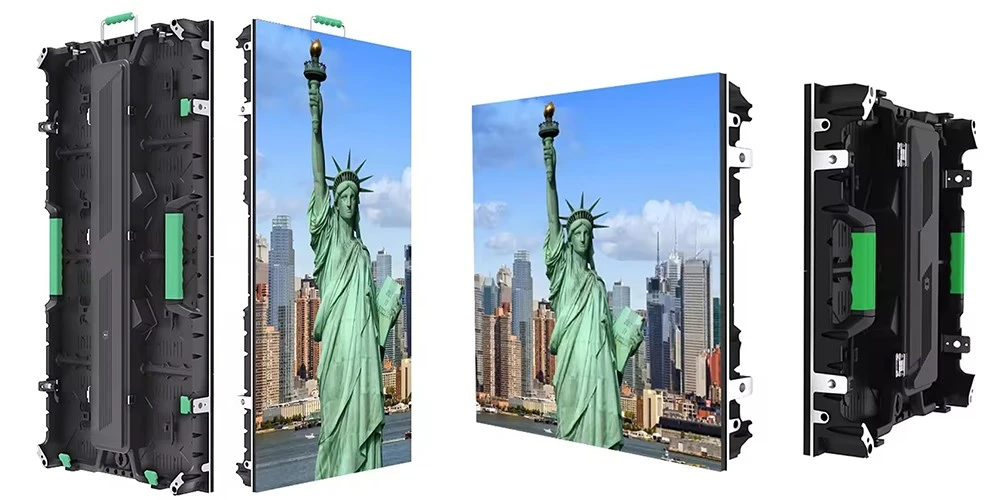

P3.91 LED box panel size 500x500mm

new led cabinet panel

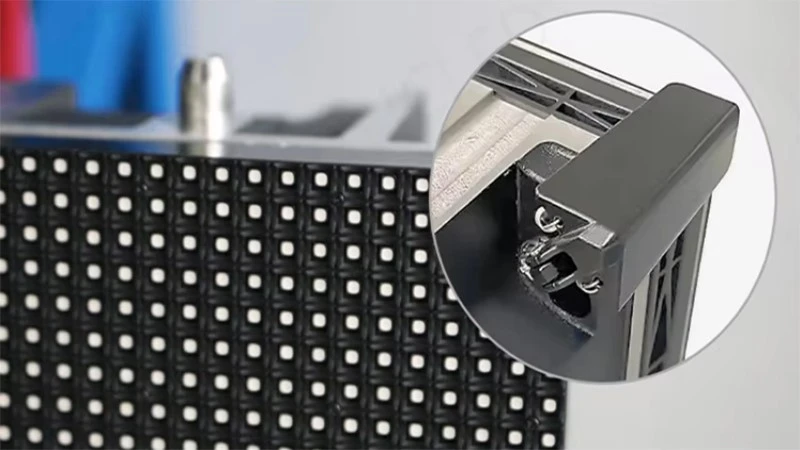

Built-in corner protectors ensure better protection during setup and transport.

We accept personalized customization, you can add your brand LOGO on the back of the LED cabinet panel to highlight your brand image

We aging test for LED video panel, good display effect.

wall display led panel

Product Application

P3.91 video wall display widely used in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises ,highway etc.
